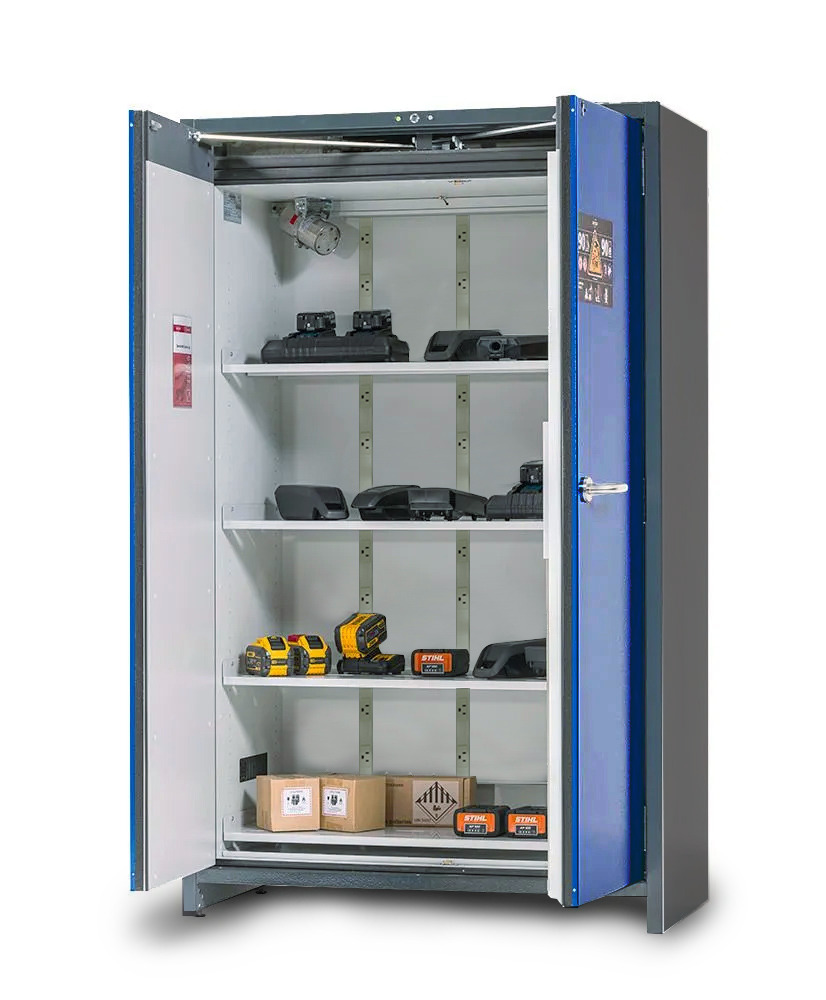

asecos lithium-ion charging cabinet, 90 Min fire resistant, 4 Shelves, 2 Door
Item number: M318997W
- For charging and storage of undamaged lithium-Ion batteries
- All-round protection: 90 min fire protection from the outside in and inside out
- With thermal activated fire suppression, smoke detector with external alarm contact,2 power strips with 10 socket each (20 sockets in total)
- With tested, liquid-tight spill sump (powder coated sheet steel), for containment of any leaks form burning or defective batteries
- With permanently self-closing doors and quality oil-damped door closers. Doors can be locked with a profile cylinder (closing system compatible) and lock indicator (red/green)
- Accessible underneath, allowing for easy moving and quick rapid evacuation in an emergency
- With adjustable feet to be used on uneven floor surfaces
- Extremely robust construction with scratch -proof paints
- We strongly recommend that the cabinets are sited at ground floor-level so that evacuation can take place quickly in the event of an incident
- Each of the four shelves measures 41 In X 17 In and has aweigh capacity of 165 Lbs
- Max weight of each battery is 33 LBS
- Shipping included in retail price
- The quantity of batteries should match the quantity of battery units and chargers, collectively covering 60% of the grid shelf space
- Type-tested fire resistance of 90 minutes (type 90) from outside to inside in accordance with DIN EN 14470-1, fire resistance of 90 minutes from inside to outside in accordance with the DIN EN 1363-1 standard
- Cabinets with a similar fire-resistant construction have been tested to FM/UL/EN standards for flammable liquid storage
- There are currently no UL/FM/CSA testing standards specific to lithium-ion charging and storage
Jump straight to:
Product description
- For charging and storage of undamaged lithium-Ion batteries
- All-round protection: 90 min fire protection from the outside in and inside out
- With thermal activated fire suppression, smoke detector with external alarm contact,2 power strips with 10 socket each (20 sockets in total)
- With tested, liquid-tight spill sump (powder coated sheet steel), for containment of any leaks form burning or defective batteries
- With permanently self-closing doors and quality oil-damped door closers. Doors can be locked with a profile cylinder (closing system compatible) and lock indicator (red/green)
- Accessible underneath, allowing for easy moving and quick rapid evacuation in an emergency
- With adjustable feet to be used on uneven floor surfaces
- Extremely robust construction with scratch -proof paints
- We strongly recommend that the cabinets are sited at ground floor-level so that evacuation can take place quickly in the event of an incident
- Each of the four shelves measures 41 In X 17 In and has aweigh capacity of 165 Lbs
- Max weight of each battery is 33 LBS
- Shipping included in retail price
- The quantity of batteries should match the quantity of battery units and chargers, collectively covering 60% of the grid shelf space
- Type-tested fire resistance of 90 minutes (type 90) from outside to inside in accordance with DIN EN 14470-1, fire resistance of 90 minutes from inside to outside in accordance with the DIN EN 1363-1 standard
- Cabinets with a similar fire-resistant construction have been tested to FM/UL/EN standards for flammable liquid storage
- There are currently no UL/FM/CSA testing standards specific to lithium-ion charging and storage
Technical data
| Placement | 2 power strips with 10 sockets each, Bottom collecting sump, Smoke detector, Fire suppression unit |
| Regulations and Compliance | C-UL (smoke detector) |
| Surface | Powder coat |
| Material | Sheet steel |
| Fire Rating | 90 minutes |
| Usage | Charging |
| Door Color | Blue |
| Body Color | Metallic grey |
| No. of Doors | 2 |
| Version | Charging cabinet |
| Internal Dimensions W x D x H [in] | 41 x 20 x 64 |
| Sump Capacity [gal] | 0.6 |
| External Dimensions W x D x H [in] | 47 x 24.2 x 77 |
| Shipping Dimensions L x W x H [in] | 58 x 58 x 85.5 |
| Shipping Weight [lbs] | 1045 |
| Make | asecos |
